Chongqing Shanyan Crane Machinery Co., Ltd.
خانه محصولاتبالابر سیم برقی

JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M

چین Chongqing Shanyan Crane Machinery Co., Ltd. گواهینامه ها
چین Chongqing Shanyan Crane Machinery Co., Ltd. گواهینامه ها
کیفیت خوب

—— جورج

حرفه ای و تحویل به موقع ، با من خوب رفتار کنید.

—— پاتریک

عالی کار می کند!

—— خالد

با تشکر از خدمات خوب پس از فروش شما آموزش عالی و پشتیبانی از فناوری به من بسیار کمک می کند.

—— کنت روزال

لطفاً بالابر دلپذیر و با قیمت های بهتر توسعه دهید ، بنابراین ما می توانیم بالابر خود را به مشتریان بیشتری بفروشیم و بازارهای بزرگتری بدست آوریم. متشکرم.

—— خالد ابوحاصره

آقای سن مرد خوبی است ، او خیلی به من کمک می کند ، متشکرم که به ما سریع پاسخ دادید و بارها ما را نجات دادید. آفرین!

—— Sivakumar veerappa nainar

چت IM آنلاین در حال حاضر

JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M

JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M

تصویر بزرگ :  JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M

جزئیات محصول:
محل منبع: چین
نام تجاری: JCYC
گواهی: ISO9001,CE
شماره مدل: SHSL
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: USD2100-USD4200
جزئیات بسته بندی: کیس تخته سه لا
زمان تحویل: 4 هفته
شرایط پرداخت: L/C، T/T، وسترن یونیون
قابلیت ارائه: 30 ست در ماه
توضیحات محصول جزئیات
نام محصول: بالابر سیمی برقی FEM 2M ظرفیت بلند کردن: 5T
ارتفاع بلند کردن: 6-30 متر سرعت بلند کردن: سرعت دوگانه، کنترل مخترع
سرعت در حال اجرا: 5-20 متر در دقیقه، کنترل مخترع FEM: 2M
ریوینگ: 4/1
برجسته کردن:

5-20m/min Running Speed Electric Wire Rope Hoist,M7 Work Level European Standard Hoist,32 Tons SWL SHSL Series Hoist

,

M7 Work Level European Standard Hoist

,

32 Tons SWL SHSL Series Hoist

JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M
Product Introduction
The SHSL series European electric hoist enhances safety and efficiency in industrial lifting operations. Designed for reliability and durability across various environments, this innovative hoist series offers improved user-friendliness and performance.
Key advantages include:
  • Maximum lifting capacity of 32 tons SWL
  • Maximum lifting height of 30 meters
  • Work level reaches M7
  • Gearbox brake system provides superior safety and reliability compared to traditional motor brake hoists
  • Enhanced load safety - maintains braking capability even during motor disassembly or failure
  • Thermally efficient design prevents heat transfer to motor
  • Simplified operation and maintenance
Product Specifications
  • Lifting capacity: 1-32t
  • Lifting height: 6-30m
  • Lifting speed: (0.8/5) m/min
  • Operating speed: (5-20) m/min
  • Power supply: 380V 50Hz 3P or customized options available
  • Custom configurations available for specific lifting requirements
Premium Components
  • Pure Copper Motor: F-level insulation, IP54 protection, soft start capability, high speed with low noise, and extended service life
  • High Strength Steel Wire Rope: National standard design, double-headed fixation, excellent safety performance and durability
  • Variable Frequency Control: Stable operation through frequency conversion speed regulation, enhanced security, and improved productivity
  • Forged Hook: Thickened steel plate construction, 360° horizontal rotation, exceptional load-bearing capacity
Technical Specifications
Rated load S.W.L (Kg) Work level Lifting Height (m) Lifting speed (m/min) Traveling speed (m/min)
2000 1AM-4M 6/9/12/15/18 0.8/5 5~20
3200 1AM-4M 6/9/12/15/18 0.8/5 5~20
5000 1AM-4M 6/9/12/15/18 0.8/5 5~20
6300 1AM-4M 6/9/12/15/18 0.8/5 5~20
8000 1AM-4M 6/9/12/15/18 0.8/5 5~20
10000 1AM-4M 6/9/12/15/18 0.8/5 5~20
12500 1AM-3M 6/9/12/15/18 0.8/5 5~20
16000 1AM-3M 6/9/12/15/18 0.66/4 5~20
20000 1AM-3M 6/9/12/15/18 0.66/4 5~20

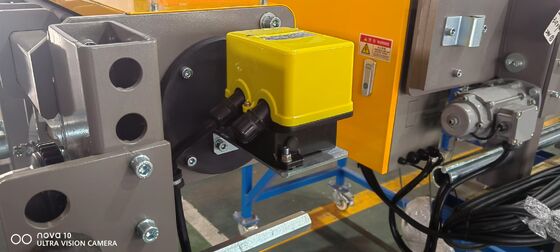

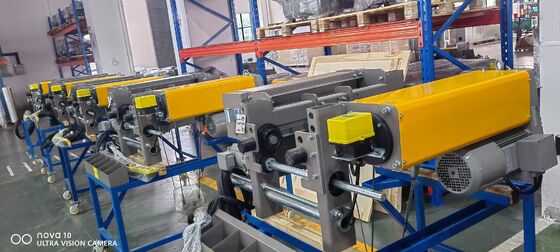

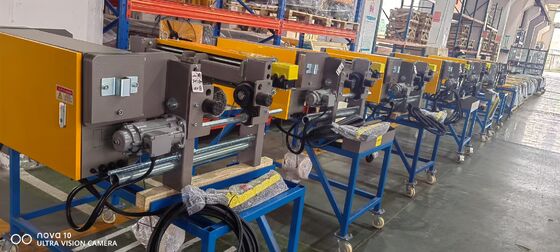

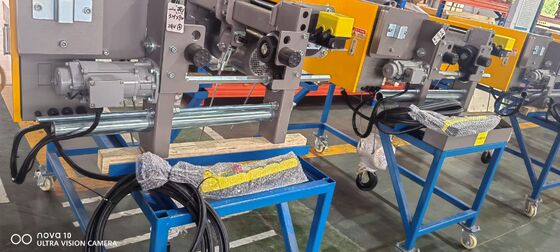

Product Images
JCYC CRANE 5 Ton European Standard Electric Wire Rope Hoist Reeving 4/1 FEM 2M 0
Frequently Asked Questions
What's your MOQ?
1 Set
What's your package?
Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes
What's your delivery period?
Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period
What's your warranty period?
One year except the easy broken spare parts
Do you have engineer oversea installation service?
Yes; We have, We can provide oversea services
What kinds of products do you have?
Electric wire rope hoist; Electric chain hoist; electric winch; Overhead Crane; Gantry Crane; JIB Crane; Portable Crane; KBK Crane; Lifting tools etc.
Could we buy spare parts in local once they are out of work?
Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.
Do you provide lift tools?
Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet, pulley blocks, hook, lock catch, wire rope, fiber rope, etc.
If get the offer, what kind of parameters need to know?
For electric hoist, we need to know: 1.Lifting capacity 2.Lifting height 3.Usage 4.Power. Once confirm, we will give you our best offer.
