12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting

چین Chongqing Shanyan Crane Machinery Co., Ltd. گواهینامه ها
چین Chongqing Shanyan Crane Machinery Co., Ltd. گواهینامه ها
کیفیت خوب

—— جورج

حرفه ای و تحویل به موقع ، با من خوب رفتار کنید.

—— پاتریک

عالی کار می کند!

—— خالد

با تشکر از خدمات خوب پس از فروش شما آموزش عالی و پشتیبانی از فناوری به من بسیار کمک می کند.

—— کنت روزال

لطفاً بالابر دلپذیر و با قیمت های بهتر توسعه دهید ، بنابراین ما می توانیم بالابر خود را به مشتریان بیشتری بفروشیم و بازارهای بزرگتری بدست آوریم. متشکرم.

—— خالد ابوحاصره

آقای سن مرد خوبی است ، او خیلی به من کمک می کند ، متشکرم که به ما سریع پاسخ دادید و بارها ما را نجات دادید. آفرین!

—— Sivakumar veerappa nainar

چت IM آنلاین در حال حاضر

12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting

12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting

تصویر بزرگ :  12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting

جزئیات محصول:
محل منبع: چین
نام تجاری: JCYC
گواهی: ISO9001,CE
شماره مدل: SHSL
پرداخت:
مقدار حداقل تعداد سفارش: 1 مجموعه
قیمت: USD4800-USD8000
جزئیات بسته بندی: کیس تخته سه لا
زمان تحویل: 4 هفته
شرایط پرداخت: L/C، T/T، وسترن یونیون
قابلیت ارائه: 15 ست در ماه
توضیحات محصول جزئیات
نام محصول: بالابر سیمی 12.5 تنی اروپایی ظرفیت بلند کردن: 12.5 تن
ارتفاع بلند کردن: 9-36 متر سرعت بلند کردن: کنترل مخترع
سرعت در حال اجرا: 5-20 متر در دقیقه، کنترل مخترع ایزو: M5 M7
تایپ کنید: تک تیر یا دو تیر

12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting
Product Introduction

European electric hoist is a popular lifting equipment for material handling. it is compact and lightweight, suitable for use in factories,warehouses, etc. As an ideal hoisting mechanism, it often matches with overhead cranes and gantry cranes. it needs the main beam to support the entire electric hoist and moves along the track. its electric motor provides power source for lifting tasks. Beside these parts, European hoist also has reducer, drum set, hook and electrical control system. There producer reduces the speed of the motor and increases the torque so European hoist could meet the needs of lifting heavy objects.

Key Specifications
  • Lifting capacity: 1-32t
  • Lifting height: 6-30m
  • Lifting speed: (0.8/5) m/min
  • Operating speed: (5-20) m/min
  • Power supply: 380V 50Hz 3P or Customized
  • Custom specifications available for different tonnage lifting heights and operational requirements
Advantage
  • Compact structure, light weight, low wheel pressure and high overall cost performance
  • Save operating costs and be low-carbon and environmentally friendly
  • Selected high-quality accessories, safe and reliable, durable
  • Precise positioning, efficient operation, and enhanced production efficiency
  • Safe and reliable, operation monitoring(optional), maintenance-free
  • Modular design with multiple options to meet the various working conditions of customers
Technical Specifications
Rated load S.W.L (Kg)Work levelLifting HeightLifting speedTraveling speed
SHSL-AFEMISOmm/minm/min
20001AM-4MM3-M66/9/12/15/180.8/55~20
32001AM-4MM3-M66/9/12/15/180.8/55~20
50001AM-4MM3-M66/9/12/15/180.8/55~20
63001AM-4MM3-M66/9/12/15/180.8/55~20
80001AM-4MM3-M66/9/12/15/180.8/55~20
100001AM-4MM3-M66/9/12/15/180.8/55~20
125001AM-3MM3-M56/9/12/15/180.8/55~20
160001AM-3MM3-M56/9/12/15/180.66/45~20
200001AM-3MM3-M56/9/12/15/180.66/45~20

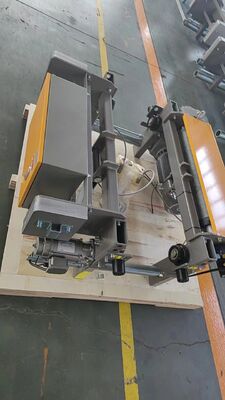

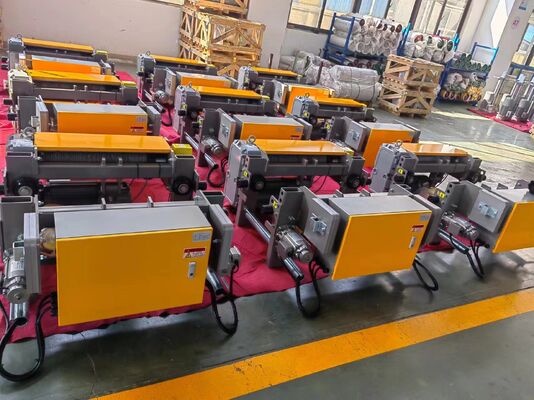

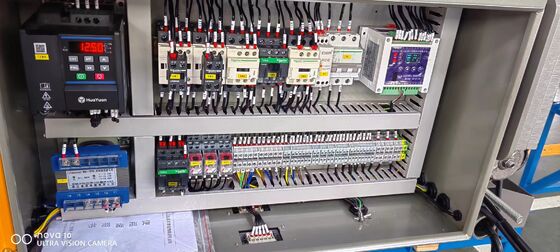

Main Components
12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting 0
12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting 1

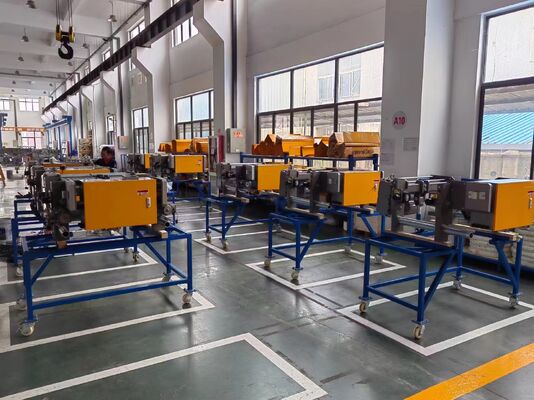

Company Introduction
12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting 2
More Products
12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting 3
Company Certificate
12.5 Ton European Single Girder Wire Rope Hoist for Power Plant Workshop Lifting 4
Frequently Asked Questions

Q1. What types of cranes do you offer?

A1:as a manufacturer with over 15 years' experience, rui cheng provide a range of cranes,in cluding gantry cranes, overhead cranes, electric hoist, ib cranes, and customized lifting solutions tailoredto specific industry needs, such as for steel, precast concrete, and container handling

Q2. How do l know which crane is suitable for my project?

A2: Our team of experts is here to help! By understanding your lifting capacity requirements,operational environment, and usage freguency, we can recommend the ideal crane solution for your project.Contact us for a free consultation.

Q3. How to choose the right crane?

A3: The following factors need to be considered when choosing a crane: Load capacity, Lifting height Working environment, Frequency of operation.

Q4. What maintenance services do you offer?

A4: We offer comprehensive maintenance plans, including preventive maintenance,inspection, repairand spare parts replacement, to keep your crane running efficiently and safely. Our service teamis available forscheduled and emergency support.

Q5: Can you accept OEM?

A5: Yes, of course. Any logo is acceptable.Material, Color, Size, Packing, Brand, Delivery etc,

Q6:What are your delivery and installation timelines?

A6: Delivery and installation timelines vary based on the type and customization of the crane Generally, standard cranes can be delivered within 6-8 weeks, while customized solutions mayreauire additional time, We aim to provide accurate timelines upfront to ensure smooth proiec tplanning.

Q7: Do you offer installation services?

A7: Yes, we provide comprehensive training programs for crane operators, including safety trainingmaintenance guidelines, and operational best practices to ensure your team is fully prepared tooperate the crane safely and efficiently.
